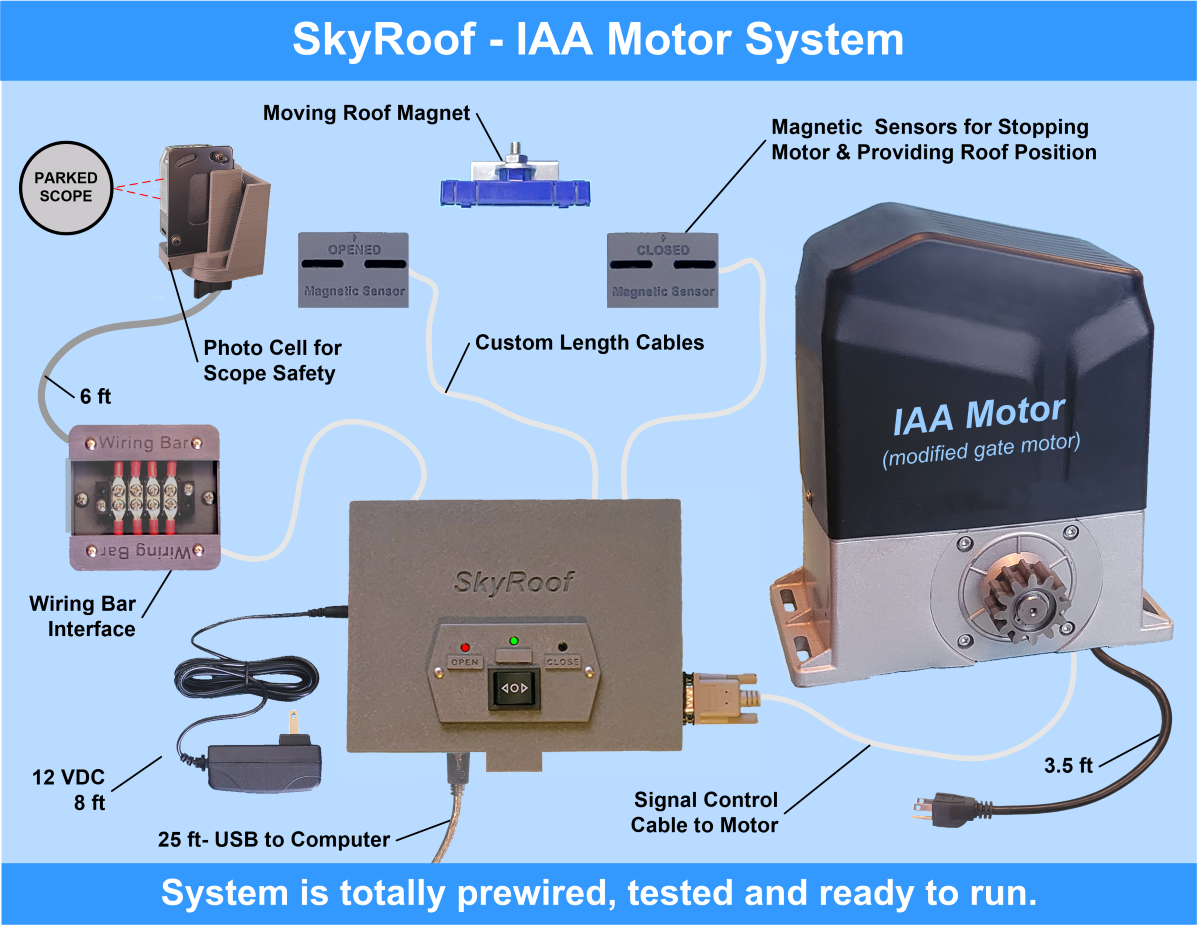

The IAA Motor System Includes:

• Free consulting to determine your requirements.- motor size, cabling, mtr/rack mounting, photo cells, etc.

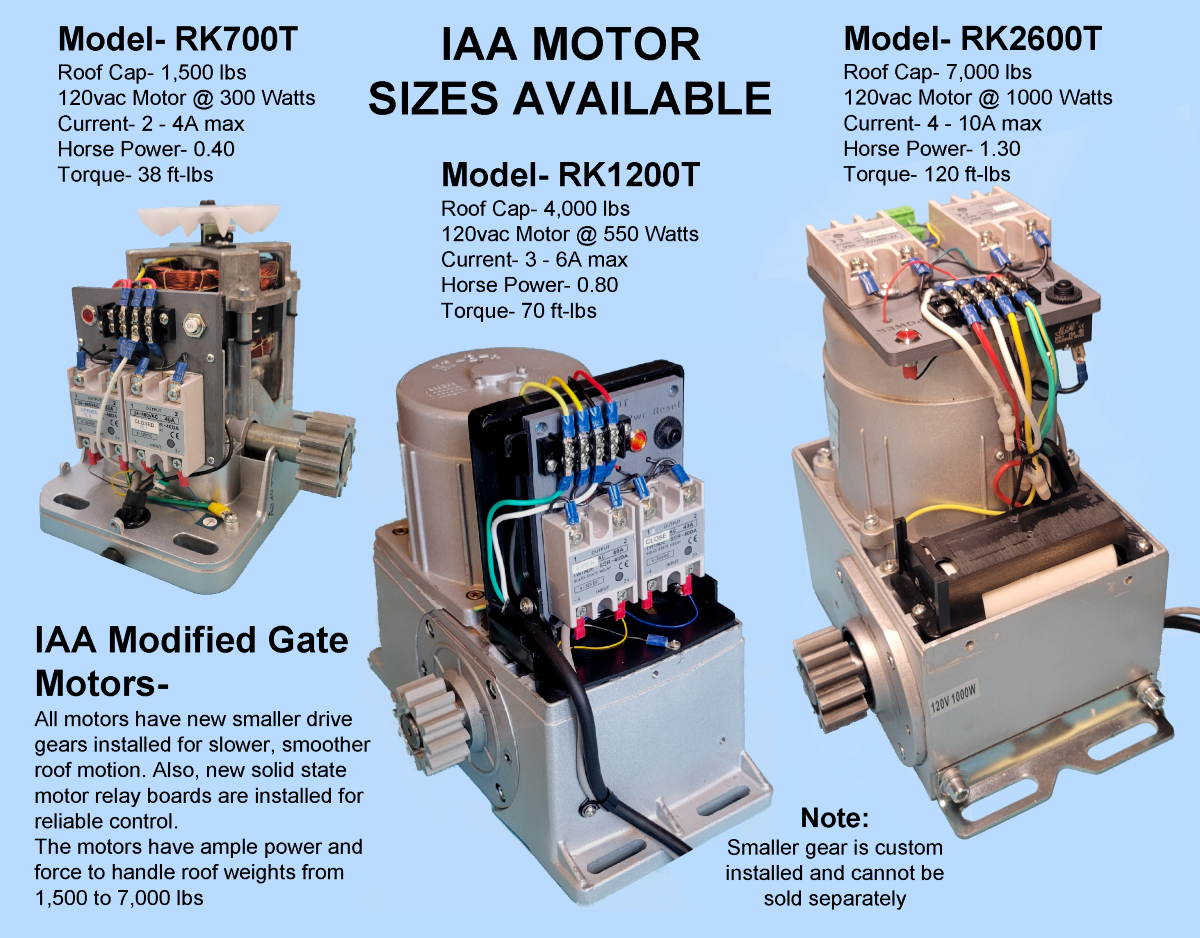

• IAA Motor. See sizes available below- 120 vac @ 550W or 1000W
• Control Box for Local, Remote or Automated control (Add a Cloud Detector for full automation, ie SkyAlert)
• SkyRoof Module includes an application for direct automation and convenient computer desktop control
• SkyRoof also includes an ASCOM™ driver to allow ASCOM™ imaging programs direct automation as well
• New Motor Relay Board (see "Modified Motor Note" at bottom of this page)

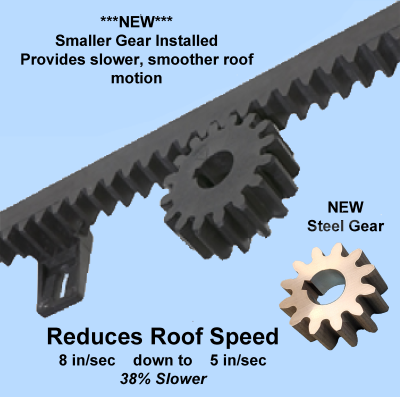

• New smaller drive gear for 38% slower, smoother roof movement
• Gear Racks Available (see Pricing table below)
• Integrated Dual Magnetic Sensor Assemblies for stopping motor and providing Roof position signal
• Photo Cell Kits available with NEW EZ adjustable mounting brackets
• 25 ft active extension USB Cable for SkyRoof to Computer
• 12 vdc adapter power supply for photocells and motor relay board
• 3D CAD drawings to clearly show telescopes, motor/ rack mounting, equipment locations and cable routing
• Custom Cable lengths for Motor, Sensors and Photocells, to match your observatory layout.
• IAA Motor System Installation Manual, specific to your observatories layout, equipment and cabling
• IAA System is completely wired and fully tested before shipment, to provide a “Plug in Play” experience

Complete Roll Off Roof Motor System

IMPORTANT LINKS TO REVIEW

COMPLETE MOTOR SYSTEM PRICING

Rack Information

Motor Dimensions

PhCell Setup+Add

Mounting Options

Magnetic Sensors

Observatory Cabling

Replacing SkyRoof

Motor Soft Starter

Cable Management

Motor System Videos

More.......

NOTE: The SkyAlert weather/cloud detector is not included in the motor system price.... Unit may be ordered HERE

© 2023 Interactive Astronomy, LLC

To order a motor system, contact us directly- (510) 495-7932.

* Interactive Astronomy is not affiliated with TOPENS™ products. Recommendations above are based on customer usage and experience.

NOTE: Racks are not included in price for the CK2600 Motor. Order from link below.

Link to order Steel Racks for CK2600

Link to order additional Nylon Racks for RK1200T

FREE CONSULTING FOR OBSERVATORY AUTOMATION.

CONTACT US TODAY!

Prior to your order we consult with you directly to determine your exact observatory requirements and establish your custom cable lengths. This allows us to pre- wire the entire system and fully test it before shipment. For consulting or ordering details: Call 510-495- 7932

For any returns or repair work, use the address below. Before sending any product back, you must contact us first to authorize the return.

Send to:

 INTERACTIVE ASTRONOMY

 1286 VALLEY FORGE DRIVE

 CHICO, CALIFORNIA 95973

 CO/ JIM COLLINS

*Price includes free shipping in the Continental U.S.

Both models include the new smaller pinion drive gear or a #40 chain sprocket if required.

SkyRoof Desktop Application

The SkyRoof IAA Motor System may be configured to completely automate your observatory. We provide free consulting to determine your exact design requirements. It is important that we talk with you directly to assess the proper motor size and how it may be mounted in your observatory. Another very important consideration is if you have roof clearance for all of your telescopes when they are at there highest slew position. If you do not, you will require photo cells for each telescope to detect a safely parked scope. Based on your particular needs there may be other issues as well, that need to be addressed.

We are here to help design a custom system that works for you!.....just call, Jim Collins @ 510-495-7932

******MODIFIED MOTOR NOTE******

***Modified gate openers have the OEM boards and drive gears replaced .***

> OEM controllers are replace with IAA solid state relay boards for more direct reliable motor control.

> OEM gear replaced with smaller IAA drive gear, for slower/ smoother roof movement.

* plus state sales tax where applicable

Sorry, no overseas sales.
